ModernLayoutLM

ModernLayoutLM is an attempt to produce a long-context (like ModernBERT) bidirectional encoder that incorporates layout information into its training (like LayoutLM). ModernLayoutLM uses the same recipe as Xu et al. (2020) in the creation of LayoutLMv1, where the major difference is swapping BERT with ModernBERT (Warner et al., 2024).

Intended use

The model is a pre-trained checkpoint that can be fine-tuned to layout understanding tasks, like named entity recognition or document classification.

from transformers import AutoModelForMaskedLM, AutoProcessor

path = "kkuroma/ModernLayoutLM"
model = AutoModelForMaskedLM.from_pretrained(path, trust_remote_code=True)
processor = AutoProcessor.from_pretrained(path, trust_remote_code=True)

batch = processor(words=["Total", "42.00"], boxes=[[10, 10, 60, 20], [70, 10, 140, 20]], max_length=512, return_tensors="pt")
model(**batch)

• bbox holds one (x0, y0, x1, y1) per word, with the origin at the top left of the page.
• Coordinates are normalized to [0, 1000] by the page width and height, not given in pixels.
• Every subword of a word takes the word's box, which the bundled processor handles.
• padding defaults to max_length, which without an explicit length is the model's own 8192.
• bbox=None skips the layout sum and the model runs as plain ModernBERT, while all-zero boxes put every word at the origin.
• Attention defaults to SDPA; attn_implementation="flash_attention_2" with flash-attn installed is faster and lighter on long documents, see Inference cost.

Training data

ModernLayoutLM is pretrained on about 11M pages of English business and scientific documents, each read once, in two stages.

stage	source	pages
1	Industry Documents Library (IDL), words and boxes from Amazon Textract	1.5M
1	PubTables-1M	461k
1	PDFA (pixparse/pdfa-eng-wds)	160k
1	DocLayNet v1.2	68k
2	IDL, from the shards stage 1 never read	8.8M

Pages carrying a Bates number from the FUNSD or RVL-CDIP evaluation splits are dropped from both stages, since IDL and those benchmarks share IIT-CDIP.

Training procedure

ModernLayoutLM is pretrained with the masked visual-language model of LayoutLMv1 (Xu et al., 2020). Four 2D position embedding tables, where x0 and x1 share table X and y0 and y1 share table Y, are summed into the token embeddings before the embedding LayerNorm. Text is masked and boxes are left intact, so recovering a masked token rewards reading its position on the page. The four tables start at zero, so the model starts numerically identical to ModernBERT. The number of iterations and the duration are set by hardware limitations, as every step ran on a single RTX 3090.

setting	value
sequence length	512 tokens, packed
masking rate	30%, following ModernBERT
batch	64 sequences per optimizer step
learning rate	5e-5 for the backbone, 1e-3 for the four layout tables
schedule	5% warmup, weight decay 0.01, one epoch per stage
precision	fp32 master weights under bf16 autocast
steps	29,899 in stage 1, 115,009 in stage 2

stage	data unpacking	training
1	not recorded	10.1 hours at 52 sequences per second
2	0.9 hours to unpack the IDL shards, 2.3 hours to tokenize and pack	17.9 hours at 114 sequences per second

Evaluation

FUNSD

• Source: Jaume et al. (2019), read from nielsr/funsd
• Released: 2019
• Size: 199 scanned forms, 149 train and 50 test
• Task: entity labeling over header, question and answer, as 7 BIO labels

CORD

• Source: Park et al. (2019), read from naver-clova-ix/cord-v2
• Released: 2019
• Size: 1,000 Indonesian receipts, 800 train, 100 validation and 100 test
• Task: receipt field labeling over 29 categories such as menu name, price and total, as 59 BIO labels

SROIE

• Source: the ICDAR 2019 Competition on Scanned Receipt OCR and Information Extraction (Huang et al., 2019), read from Ssunbell/SROIE_layoutlmv2_sequence
• Released: 2019
• Size: 973 receipts, 594 train, 32 validation and 347 test
• Task: key information extraction over company, date, address and total, as 9 BIO labels

RealKIE

• Source: Townsend et al. (2024), the FCC Invoices, NDA and Charities sets, read from the Zenodo release with its own OCR
• Released: 2024
• Size: long multi-page documents, 38% to 55% of them past 4096 tokens
• Task: key information extraction labeled as character spans over the OCR text

set	train, validation and test documents	fields	BIO labels	median tokens
FCC Invoices	221, 75 and 74	11	23	2,948
NDA	248, 93 and 98	3	7	3,522
Charities	322, 108 and 108	28	57	4,525

Results

Each column is one model fine-tuned on identical data.

• ModernLayoutLM: this model, fine-tuned with boxes.
• LayoutLMv1: microsoft/layoutlm-base-uncased, fine-tuned with boxes.
• ModernLayoutLM (no-pretrain): the same architecture fine-tuned with boxes straight from ModernBERT, skipping the layout pretraining.
• ModernLayoutLM (no-bbox): this model fine-tuned with every box at the origin.
• ModernBERT: answerdotai/ModernBERT-base fine-tuned on text alone.

setting	value
metric	entity F1, and field-level Hmean per ICDAR task 3 on SROIE
seeds	mean ± standard deviation over three seeds, one seed on RealKIE
split	FUNSD on test as it has no validation split, the rest on validation
learning rate	3e-4, chosen on FUNSD test, and 5e-5 for LayoutLMv1 as in its paper
epochs	30, 10 on RealKIE
window	1024 tokens, 4096 on RealKIE, 512 for LayoutLMv1 as its positions cap there
long documents	chunks are stitched back into one document before scoring

dataset	ModernLayoutLM	LayoutLMv1	ModernLayoutLM (no-pretrain)	ModernLayoutLM (no-bbox)	ModernBERT
FUNSD	0.7565 ± 0.0037	0.7785 ± 0.0104	0.5939 ± 0.0205	0.3000 ± 0.0247	0.5884 ± 0.0082
CORD	0.9546 ± 0.0023	0.9685 ± 0.0037	0.9462 ± 0.0050	0.9312 ± 0.0042	0.9424 ± 0.0006
SROIE	0.9337 ± 0.0060	0.9223 ± 0.0199	0.8883 ± 0.0121	0.8411 ± 0.0189	0.8955 ± 0.0072
RealKIE FCC	0.8761	0.8613	0.8569	0.7178	0.8607
RealKIE NDA	0.8586	0.8539	0.8503	0.5735	0.8571
RealKIE Charities	0.8043	0.8071	0.7679	0.3740	0.7725

ModernLayoutLM performs comparably to LayoutLMv1, but natively supports long context.

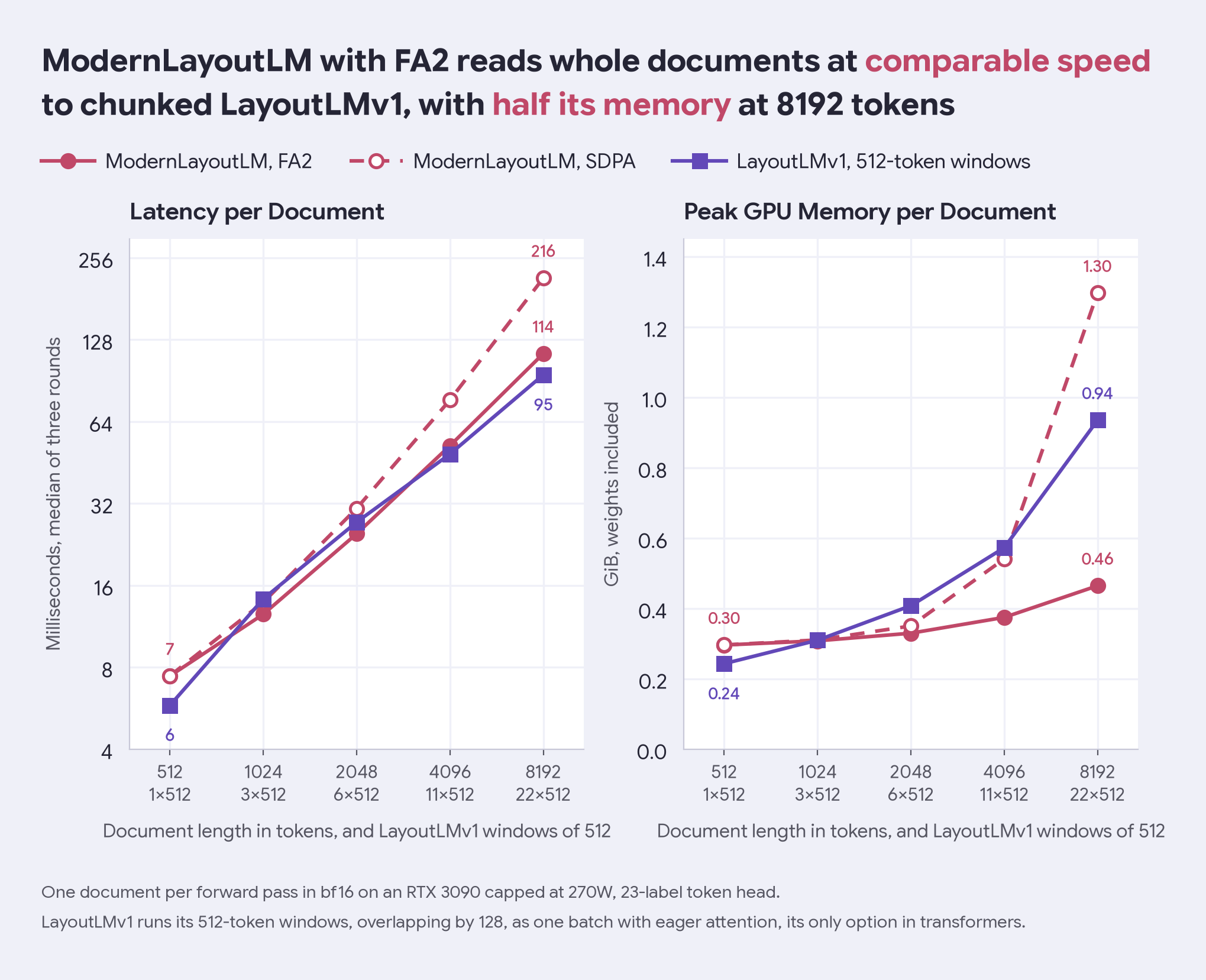

Inference cost

setting	value
input	one document per forward pass, bf16, 23-label token head
hardware	RTX 3090 capped at 270W
timing	median of three rounds of 30 passes, the model order alternating between rounds
memory	peak allocated, weights included
LayoutLMv1	512-token windows overlapping by 128, run as one batch with eager attention, its only option in transformers

tokens	LayoutLMv1 windows	LayoutLMv1 ms	ModernLayoutLM SDPA ms	ModernLayoutLM FA2 ms	LayoutLMv1 GiB	ModernLayoutLM SDPA GiB	ModernLayoutLM FA2 GiB
512	1	5.8	7.4	7.4	0.24	0.30	0.30
1024	3	14.3	13.9	12.5	0.31	0.31	0.31
2048	6	27.3	30.7	24.8	0.41	0.35	0.33
4096	11	48.6	76.9	52.2	0.57	0.54	0.37
8192	22	95.1	215.7	113.8	0.94	1.30	0.46

Citation

Xu, Y., Li, M., Cui, L., Huang, S., Wei, F., & Zhou, M. (2020). LayoutLM: Pre-training of Text and Layout for Document Image Understanding. In Proceedings of the 26th ACM SIGKDD International Conference on Knowledge Discovery & Data Mining (pp. 1192-1200). https://doi.org/10.1145/3394486.3403172

Warner, B., Chaffin, A., Clavié, B., Weller, O., Hallström, O., Taghadouini, S., Gallagher, A., Biswas, R., Ladhak, F., Aarsen, T., Cooper, N., Adams, G., Howard, J., & Poli, I. (2024). Smarter, Better, Faster, Longer: A Modern Bidirectional Encoder for Fast, Memory Efficient, and Long Context Finetuning and Inference. Preprint.

@inproceedings{xu2020layoutlm,
  title={LayoutLM: Pre-training of Text and Layout for Document Image Understanding},
  author={Xu, Yiheng and Li, Minghao and Cui, Lei and Huang, Shaohan and Wei, Furu and Zhou, Ming},
  booktitle={Proceedings of the 26th ACM SIGKDD International Conference on Knowledge Discovery \& Data Mining},
  pages={1192--1200},
  year={2020},
  publisher={ACM},
  doi={10.1145/3394486.3403172}
}

@misc{warner2024smarterbetterfasterlonger,
  title={Smarter, Better, Faster, Longer: A Modern Bidirectional Encoder for Fast, Memory Efficient, and Long Context Finetuning and Inference},
  author={Benjamin Warner and Antoine Chaffin and Benjamin Clavi{\'e} and Orion Weller and Oskar Hallstr{\"o}m and Said Taghadouini and Alexis Gallagher and Raja Biswas and Faisal Ladhak and Tom Aarsen and Nathan Cooper and Griffin Adams and Jeremy Howard and Iacopo Poli},
  year={2024}
}

License

Apache 2.0, the license ModernBERT is released under, see LICENSE.
